Designing an Unbreakable, Zero-Gap 3D Printable Snap-Fit Joint for Miniature Toy Kits
Standard 3D-printed snap pins snap right across their layer lines after a few cycles—especially when scaled down for miniature toy cars. Follow our 4-generation engineering evolution in Blender & Python, from vertical ball-and-socket joints to our Version 4 Closed-Loop "Spring-Eyelet" Connector that prints with continuous XY filament loops and locks with a 0.0 mm flush seam.
CAD Renders & Engineering Visuals
Every image below was rendered directly from our parametric Blender 3D meshes or synthesized from those exact CAD renders. Click any image to download full resolution.

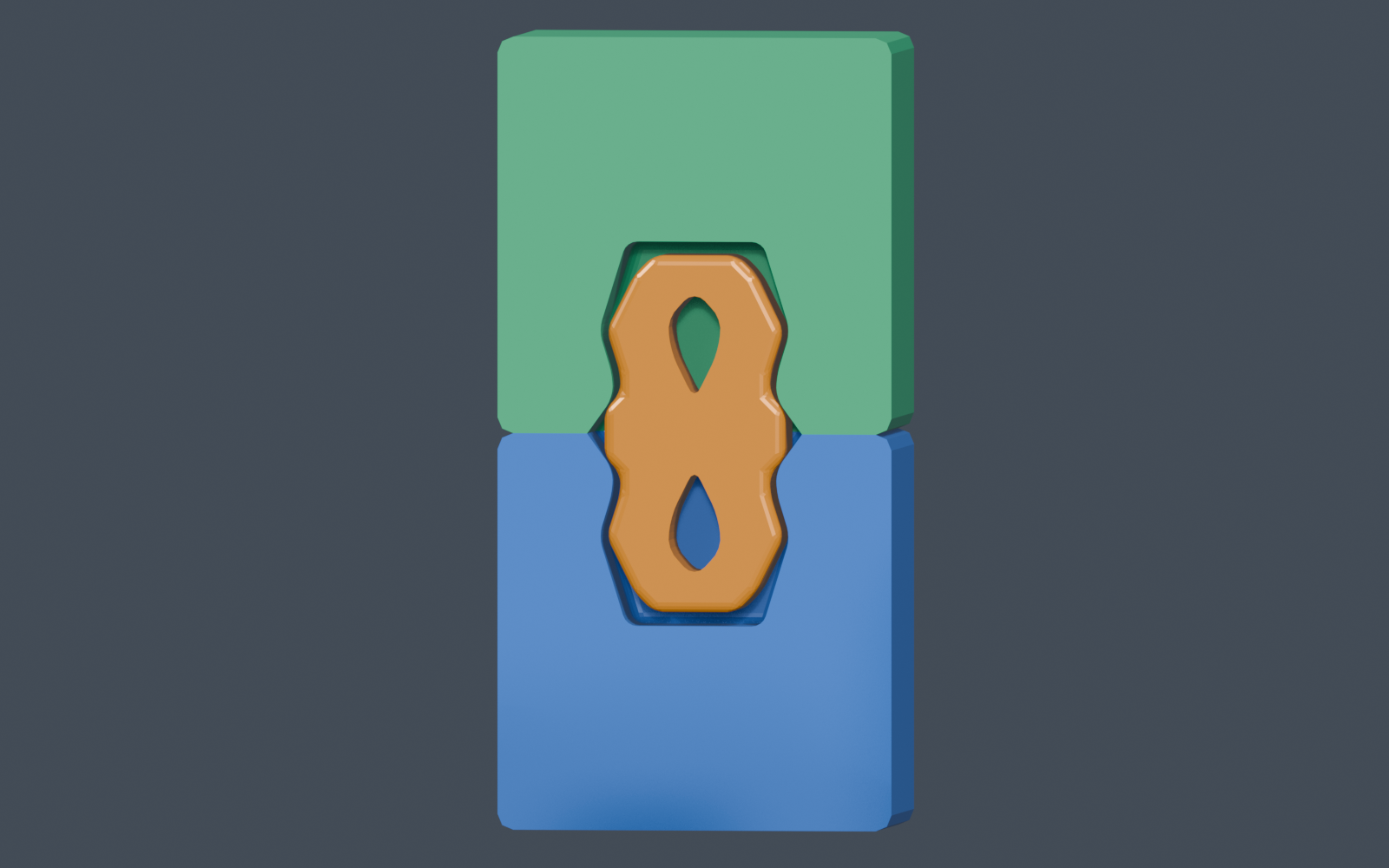

Zero-Gap Internal Cam Lock Cutaway
Direct orthographic Blender section view (`X = 18.0 mm`). Notice how the center stop-collar nests completely inside the recessed countersink so the blue and green blocks meet with zero gap (`Z = 10.0 mm`), while `0.35 mm` tip clearance prevents early bottoming-out.

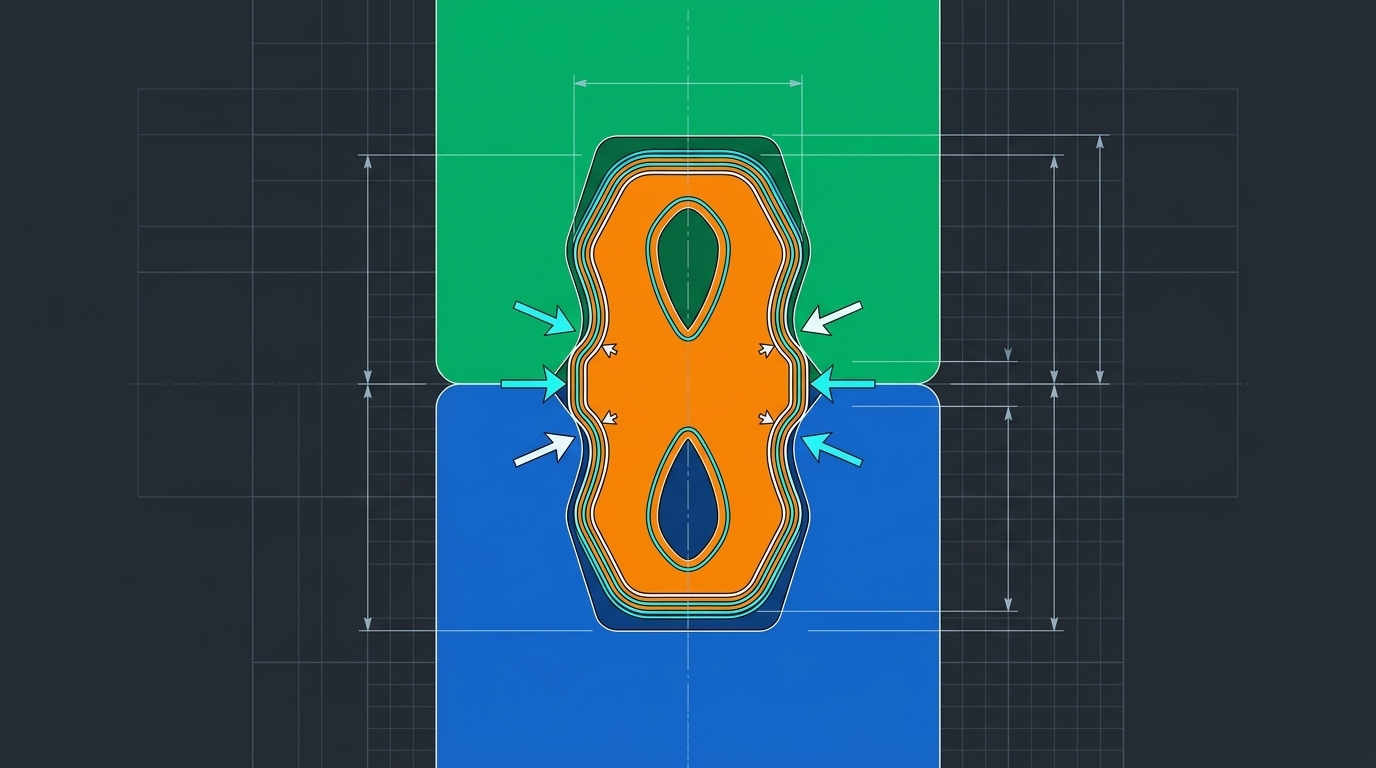

Continuous XY Perimeter Loops & Cam Vectors
Generated from our Blender cutaway to visualize why Version 4 never breaks at miniature scale: unbroken perimeter filament loops wrap around the twin teardrop spring-eyelets, flexing inward like a double-supported leaf spring instead of shearing across layer lines.

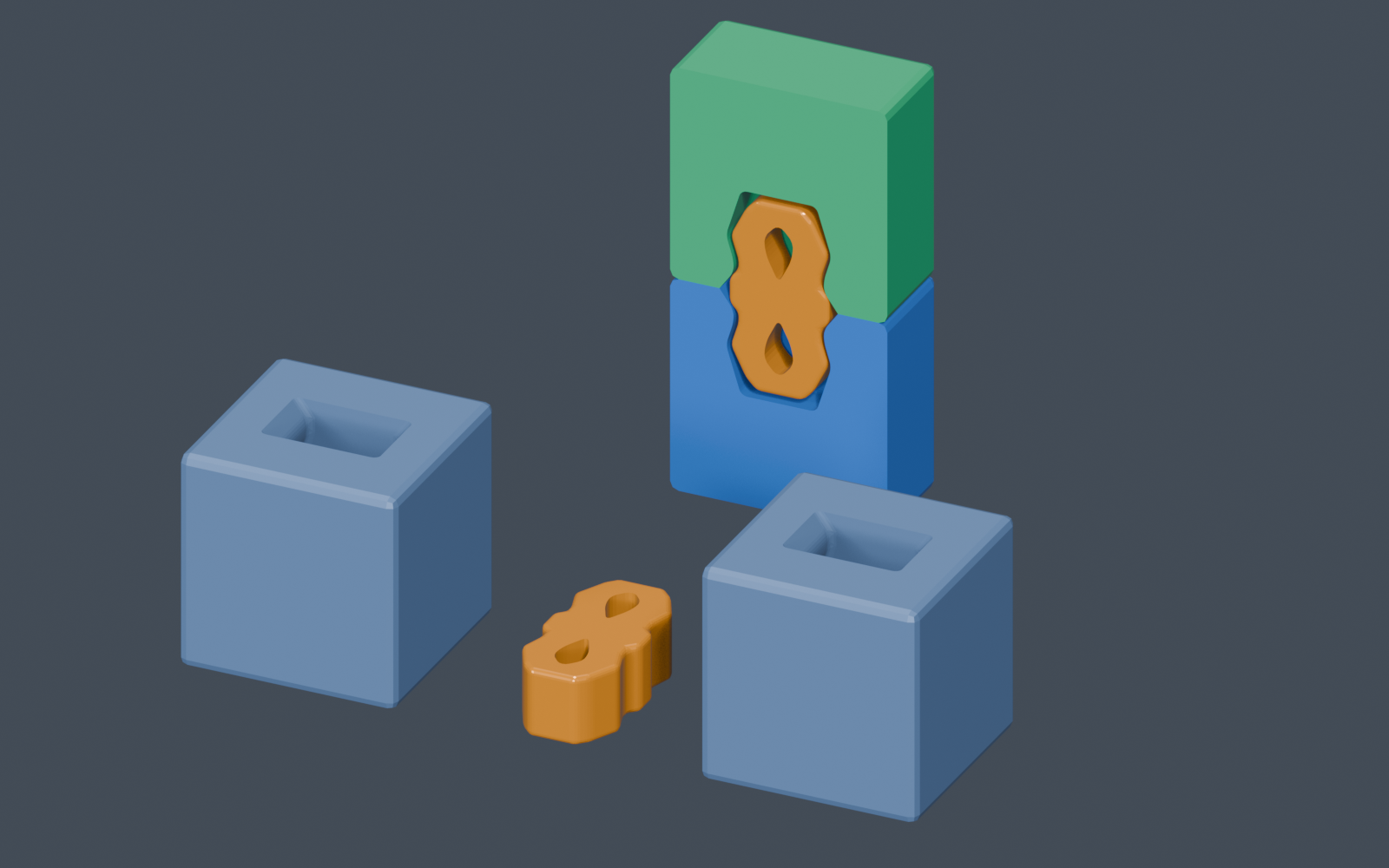

Shows the 3 printable parts in their exact build-plate orientations (`+Z` upright socket blocks and flat `3.2 mm` connector pin) alongside the assembled cross-section.

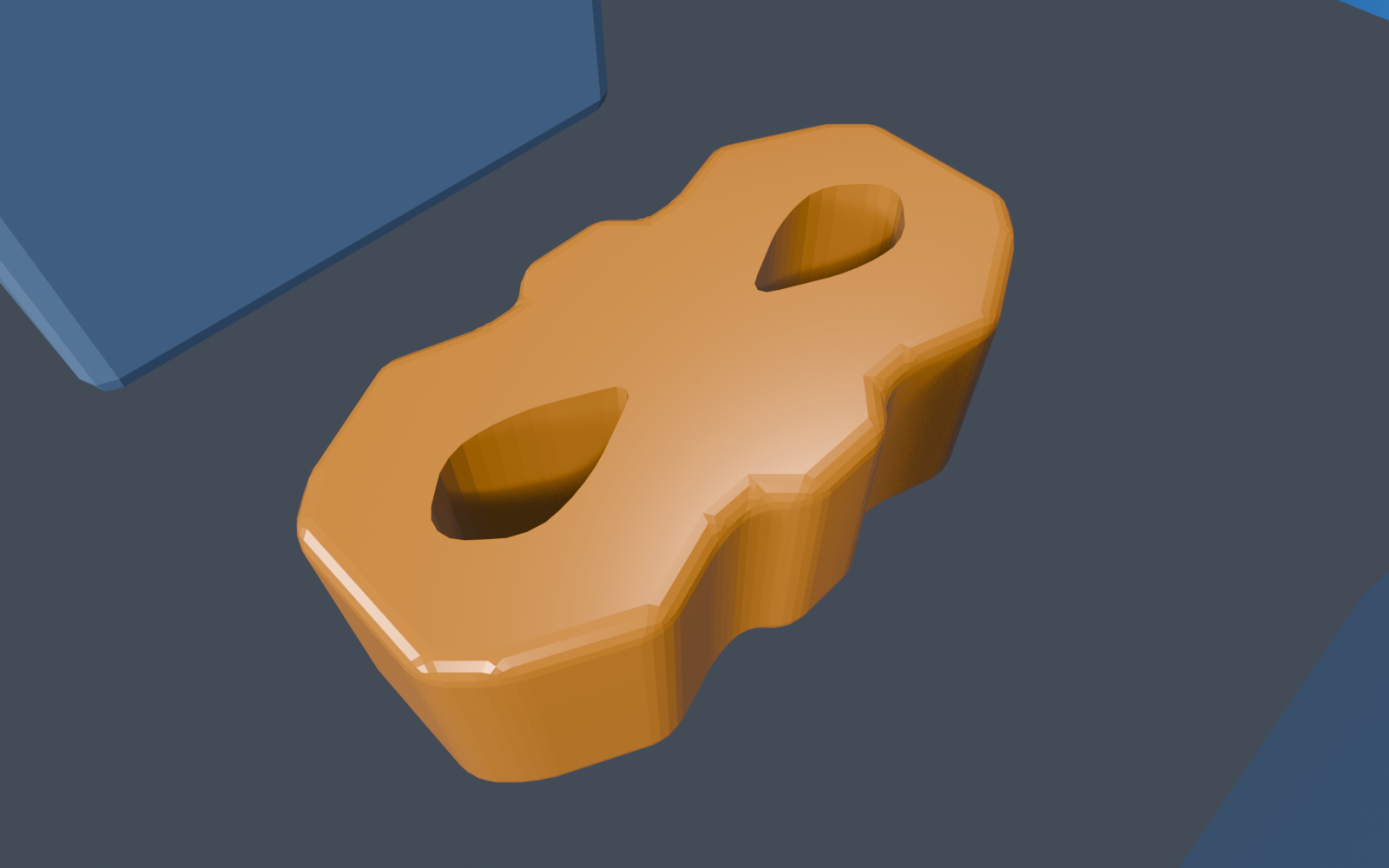

Close-up of `Mini_Connector_Pin_v4` (`9.0 × 4.6 × 3.2 mm`). Joined nose tips prevent snagging while internal diamond eyelets provide smooth leaf-spring compliance.

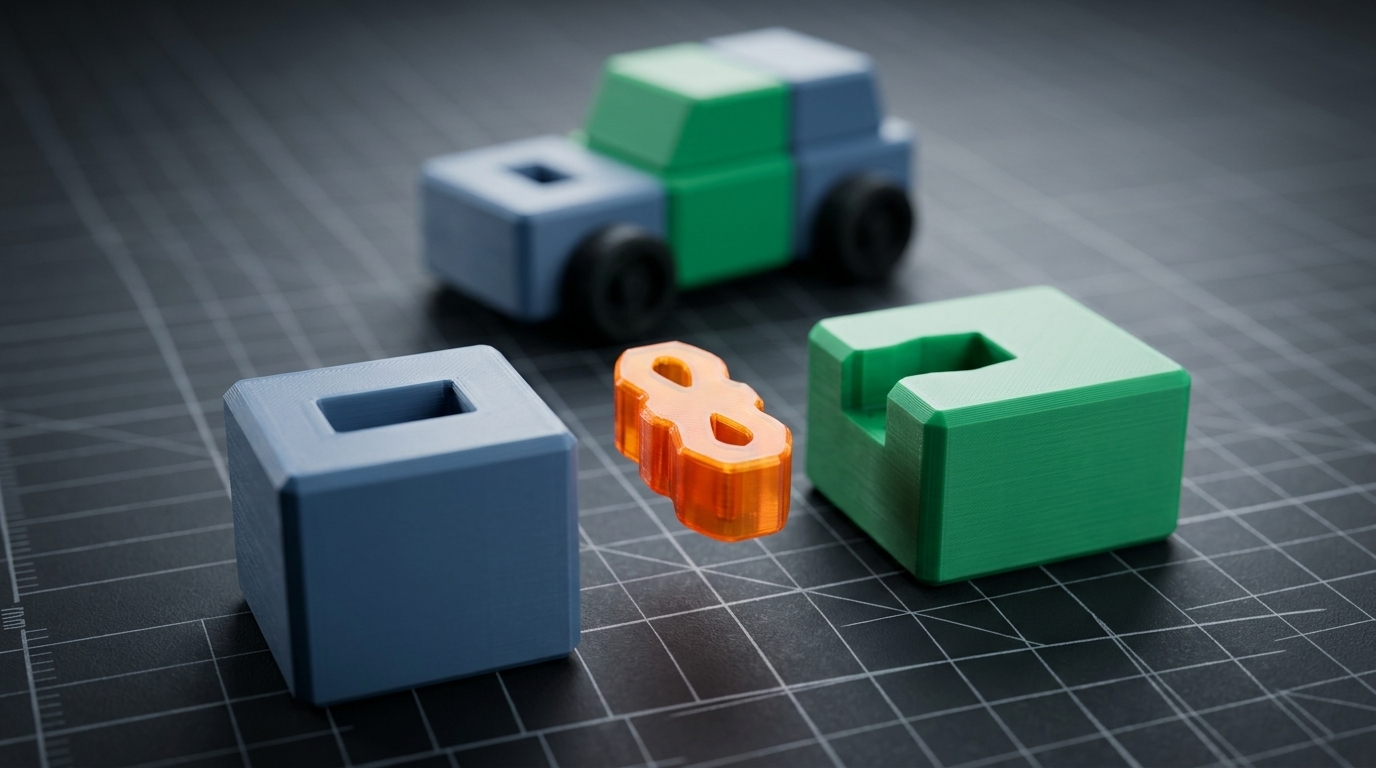

Studio macro visualization showing how the orange figure-8 spring-eyelet pin joins modular toy car chassis, bumper, and cabin blocks on a millimeter cutting mat.
Download All STLs, Blender Files & Python Generators
Grab the complete `.zip` archive containing all 4 iterations, or download individual `.stl` meshes, `.blend` project files, and parametric `bpy` Python scripts below.
v4 Miniature Closed-Loop "Spring-Eyelet" Kit
Best for tiny parts & miniature toy cars (`10×10×10 mm`). Uses a closed-loop diamond leaf-spring connector pin (`9.0 × 4.6 × 3.2 mm`) with joined tips so thin prongs never snap off. Both blocks print upright in `+Z` without supports and snap together with a 0.0 mm flush seam.
v3 Dual +Z Socket Blocks & Double-Ended Pin
Best for standard `20×20×20 mm` modular blocks. Both blocks feature vertical `+Z` socket holes and print upright without supports, connected by a flat-printed double-ended snap fork pin (`14 × 7.2 × 6.0 mm`) with dual `2.3 mm` keyhole stress-relief cylinders.
v2 Horizontal-Flex Planar Snap Blocks
2-part side-by-side connection (`+X` into `-X`). The fork extends horizontally (`8.0 mm` thick in `Z`) with an embedded `2.6 mm` keyhole relief inside the plug block so filament loops run continuously along the prongs.
v1 Spherical Ball-and-Socket Blocks
Our initial baseline prototype (`20×20×20 mm`). Uses a `7.2 mm` slotted ball plug with a `2.0 mm` stress-relief keyhole and a manifold spherical socket cavity with a top compliance relief slot. Best for resin/SLS or low-stress swivel joints.
